FLEX BOOST F44 V2 Turbo Kit

FLEX BOOST F44 V2 Turbo Kit (44mm)

Included in this Turbo Kit:

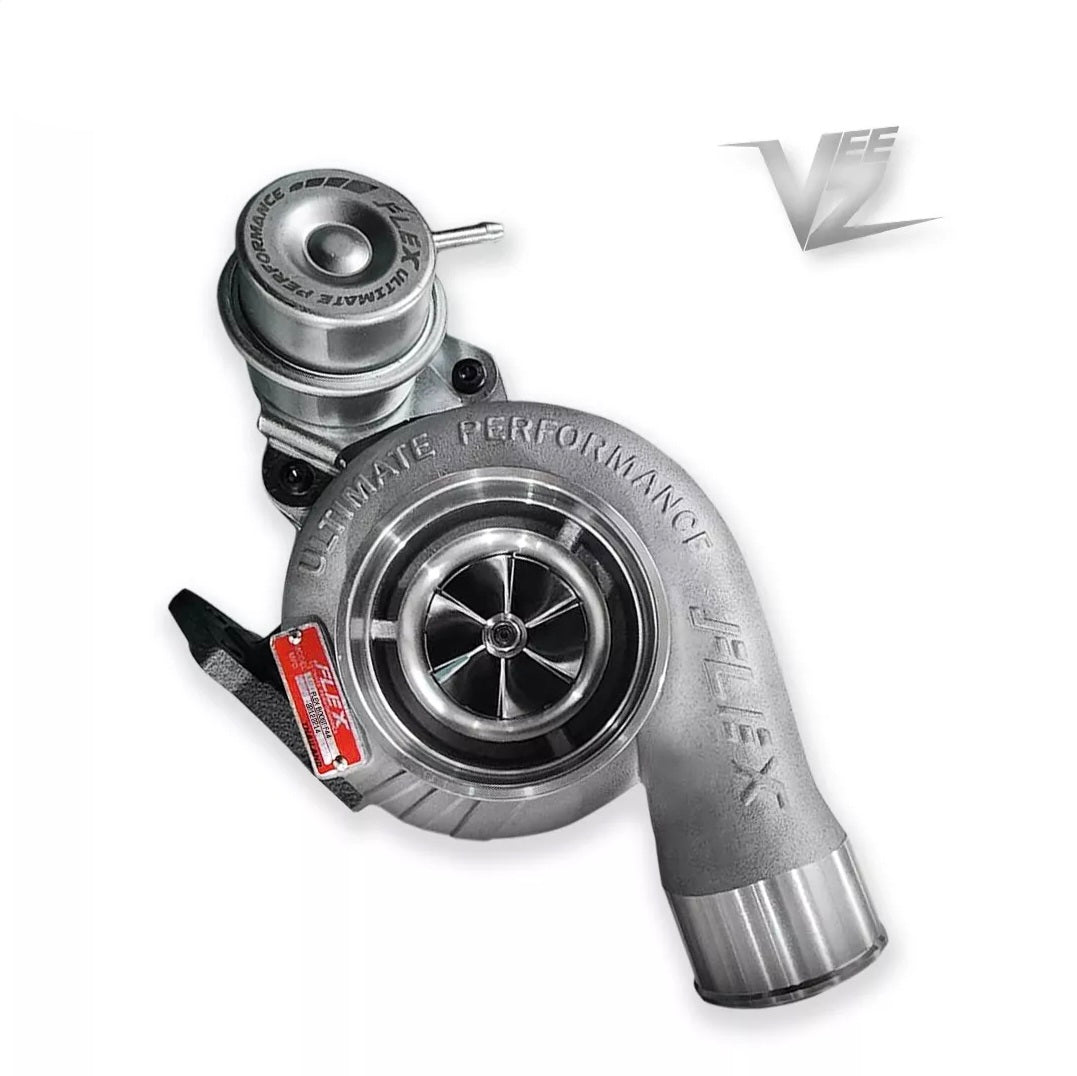

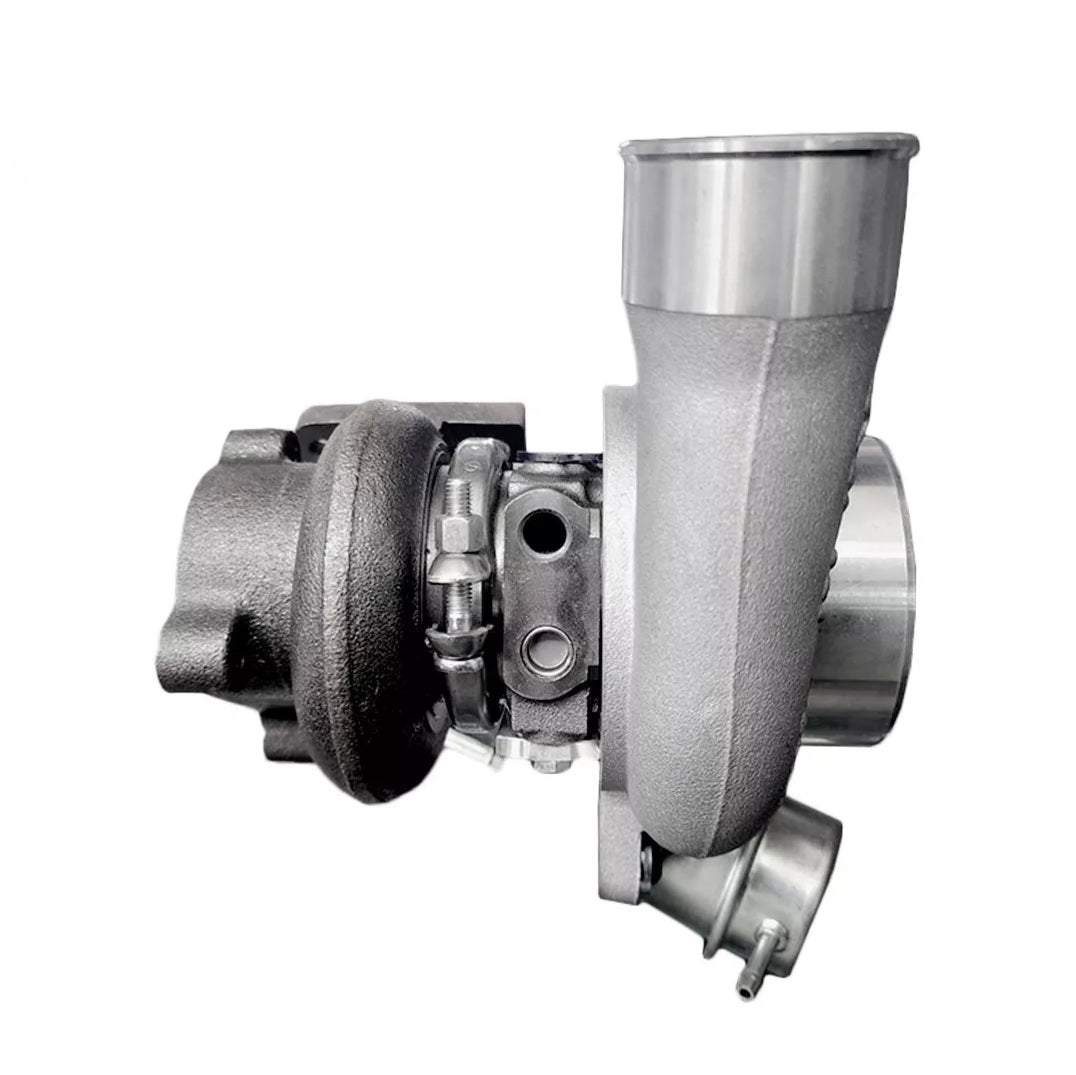

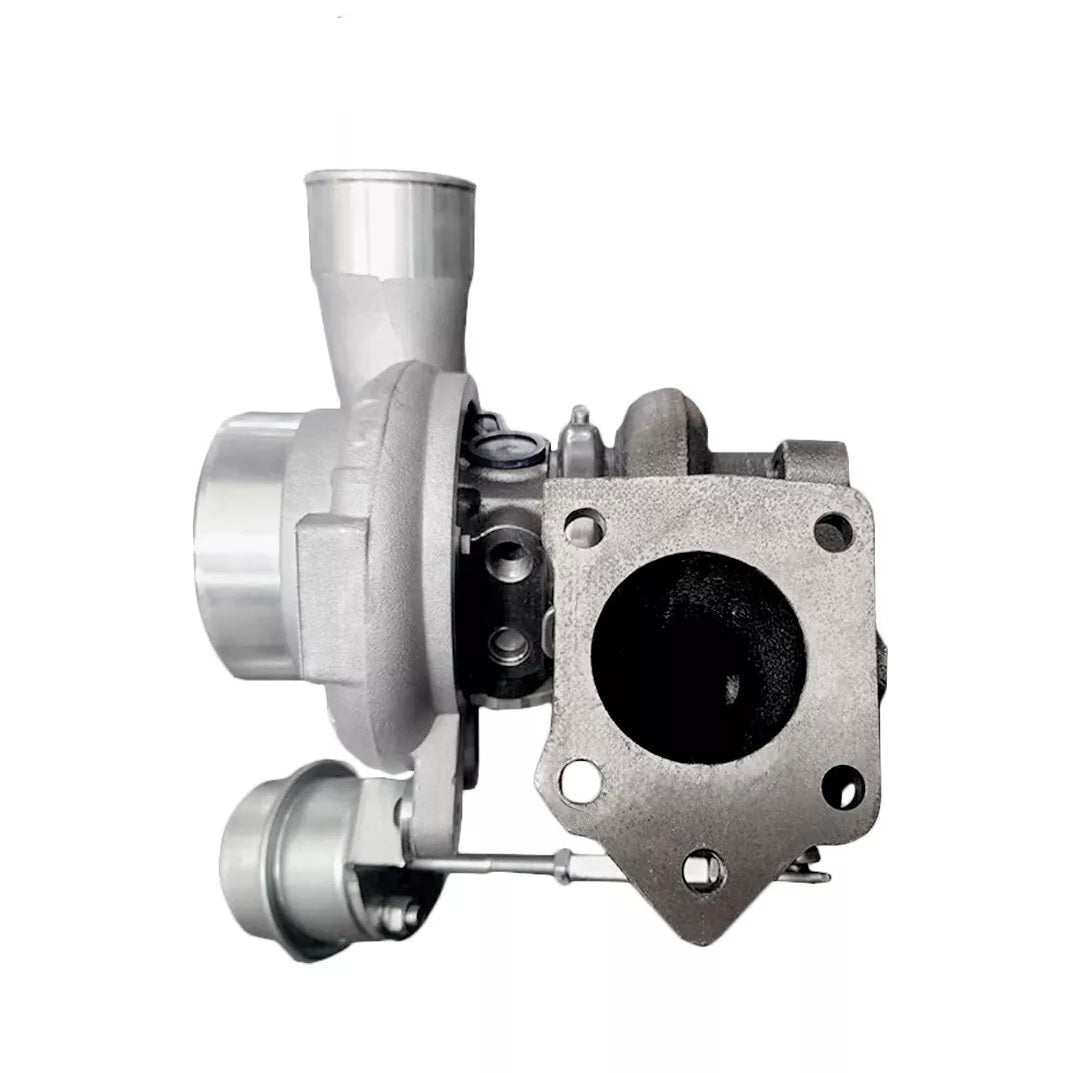

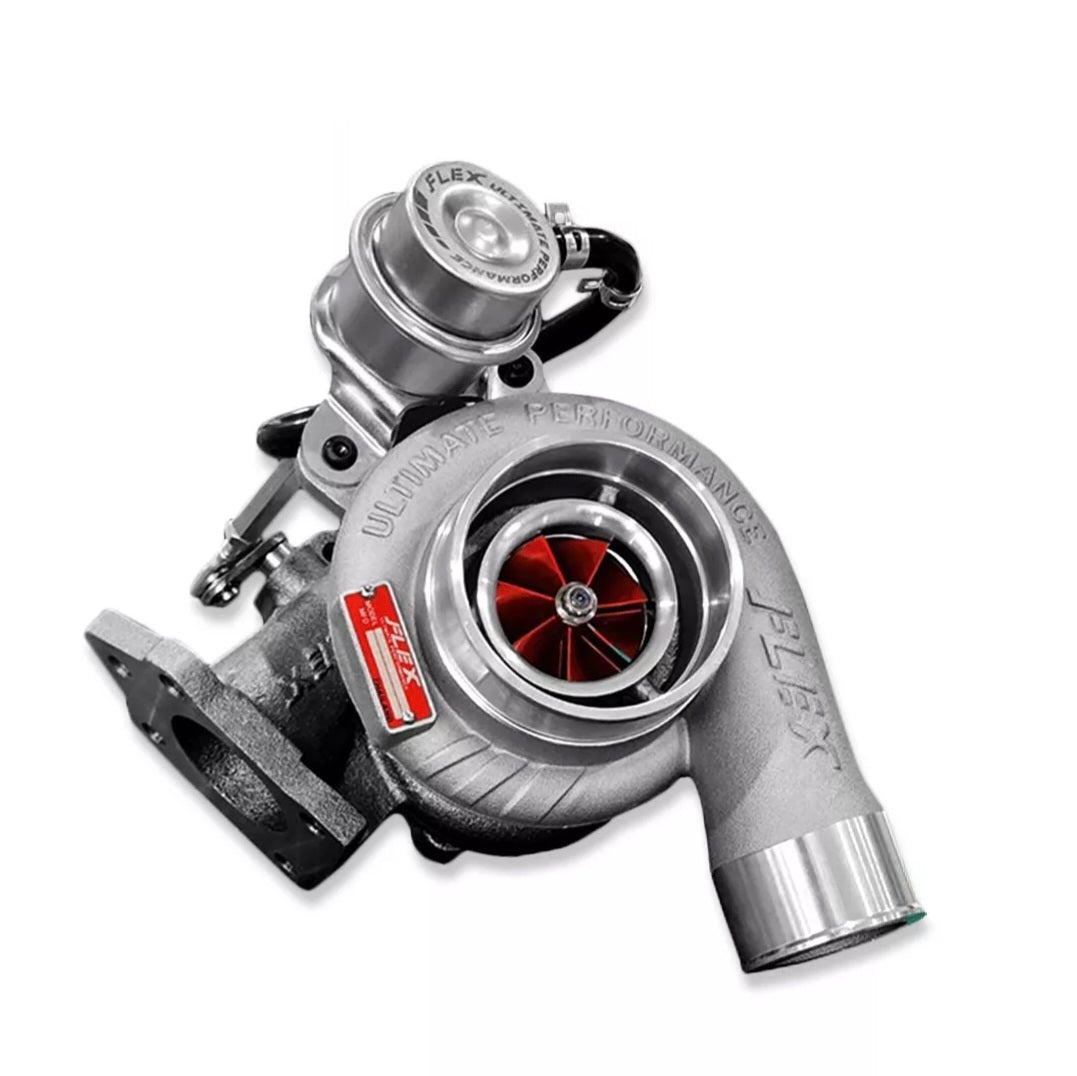

1 x FLEX BOOST F44 V2 Turbo (44mm)

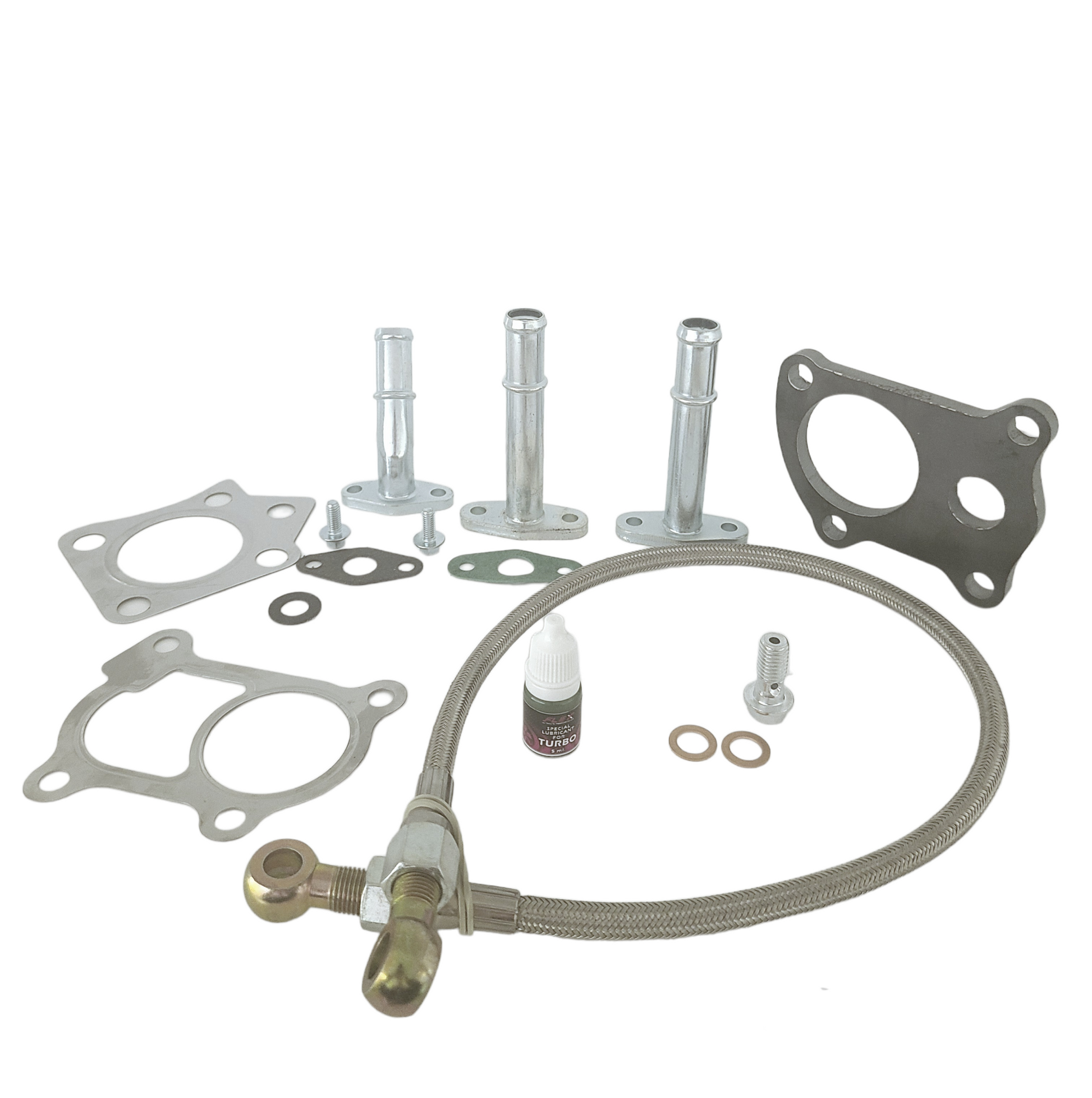

1 x FLEX Install Kit (Gaskets, Dump Pipe Flange)
1 x FLEX Oil Feed Line and Oil Return Fittings
1 x FLEX Install Lube

Description

The FLEX 'BOOST' Series F44 Turbos is a great entry level turbo for those wanting to upgrade from stock. The FLEX BOOST F44 V2 is a gated 44mm turbo that is designed to produce 30psi of boost in the low-mid RPM range - perfect for touring, towing and daily driving. Pair with an intercooler and +30 nozzles for solid power gains. The FLEX BOOST F44 V2 is a popular turbo upgrade for 4cyl diesel engines.

Specifications

• 44.5mm front / 46mm rear

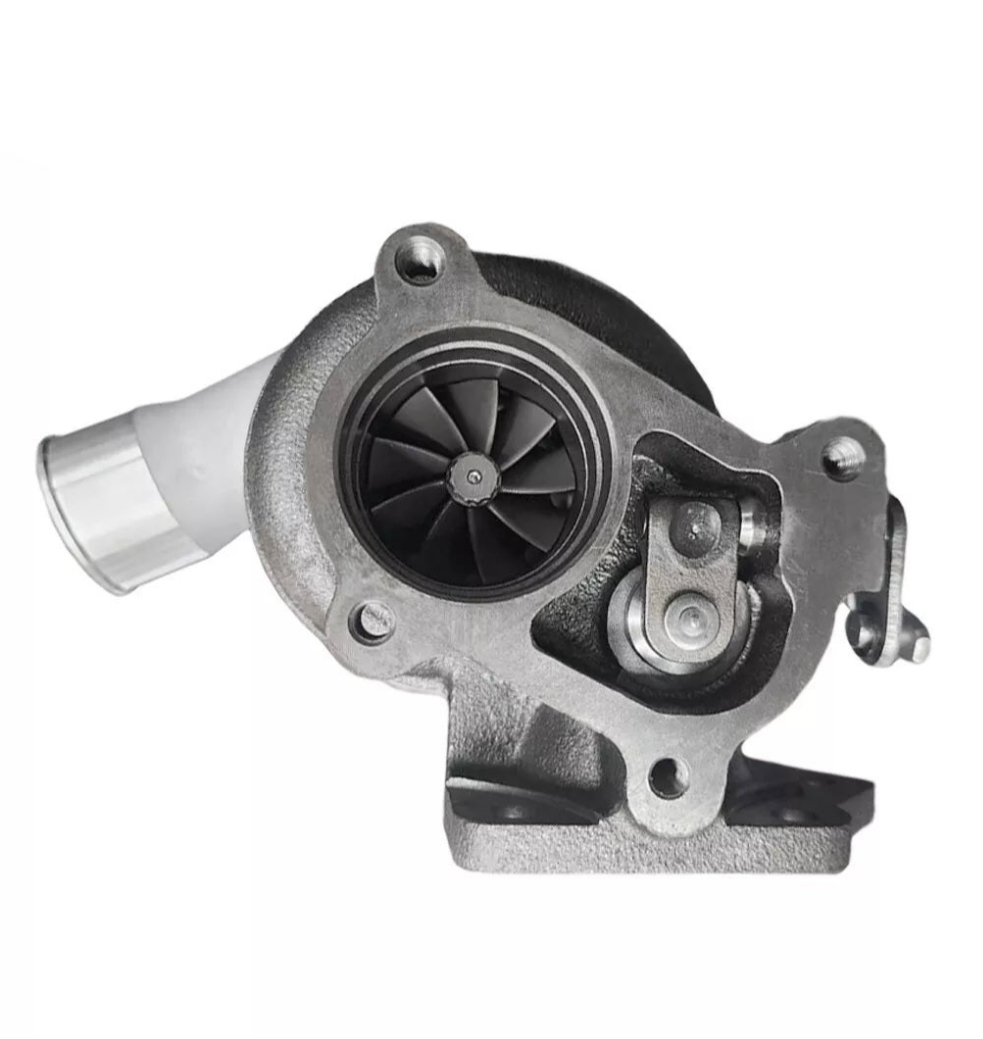

• 11 blade turbine
• 6 blade compressor
• RHF4 flange
• Waste Gate Actuator (fully assembled)
• 25-30psi recommended
• Suits 4cyl Diesel Engines

Compatible Vehicles:

• Rodeo RA7 2007 - 2008 (4JJ1)
• RC Colorado 2008 - 2011 (4JJ1)*
• RG Colorado 2012 - 2017 (4JJ1)*
• Isuzu Dmax 2008 - 2011 (4JJ1)*
• Isuzu Dmax 2012 - 2017 (4JJ1)*
• Isuzu MUX 2012 - 2017 (4JJ1)*

*If fitting the FLEX BOOST F44 V2 to a factory 4JJ1 VNT/VGT exhaust manifold, the turbo flange bolt holes may need to be cut on one side of the flange to align the factory bolt holes. Alternatively, the stock manifold can be drilled and tapped, or an adaptor plate can be used.
