FLEX BOOST F55 Turbo Kit
FLEX BOOST F55 Turbo Kit
FLEX BOOST F55 Turbo Kit
Included in this Turbo Kit:

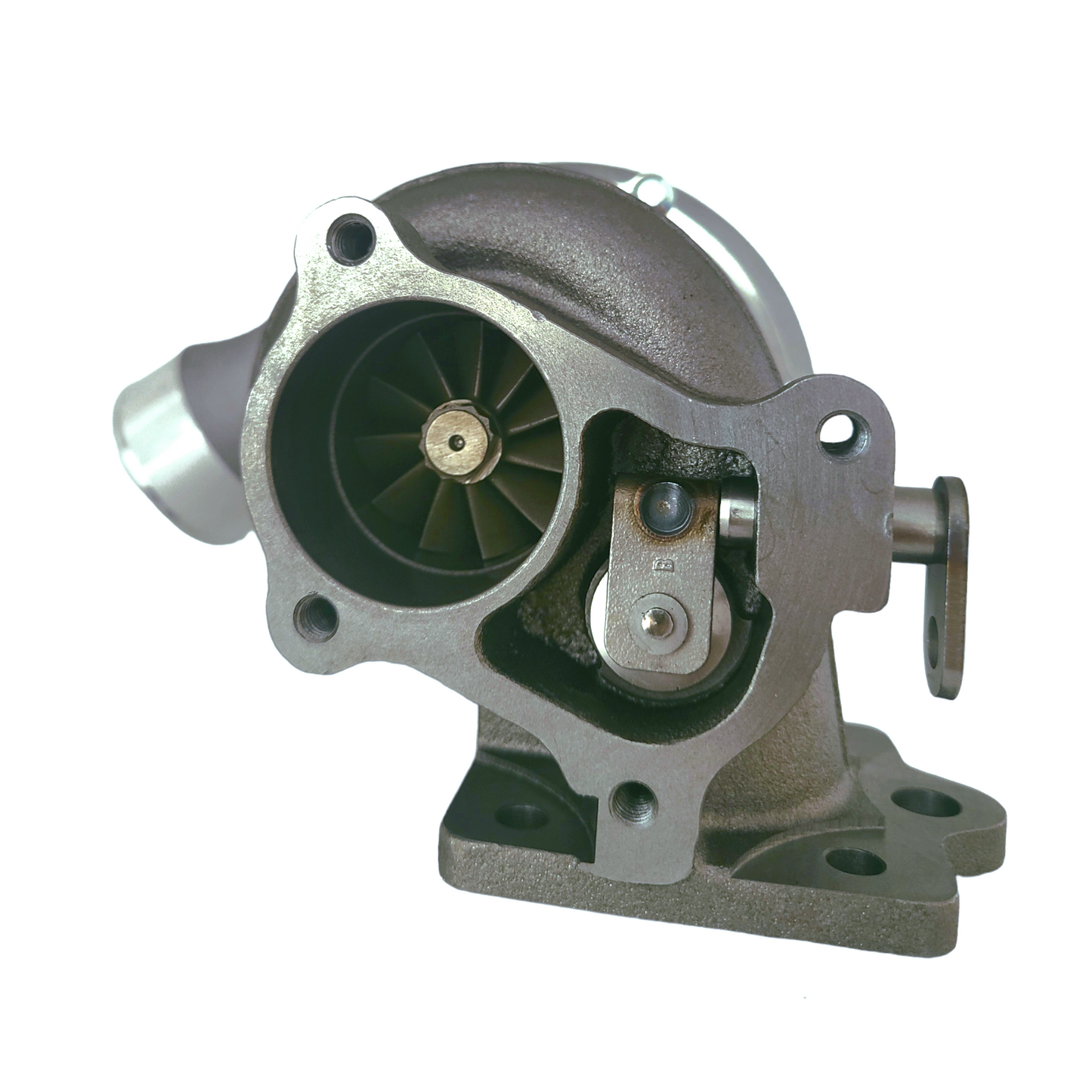

1 x FLEX BOOST F55 Turbo (48.5mm)
1 x FLEX Wastegate Actuator

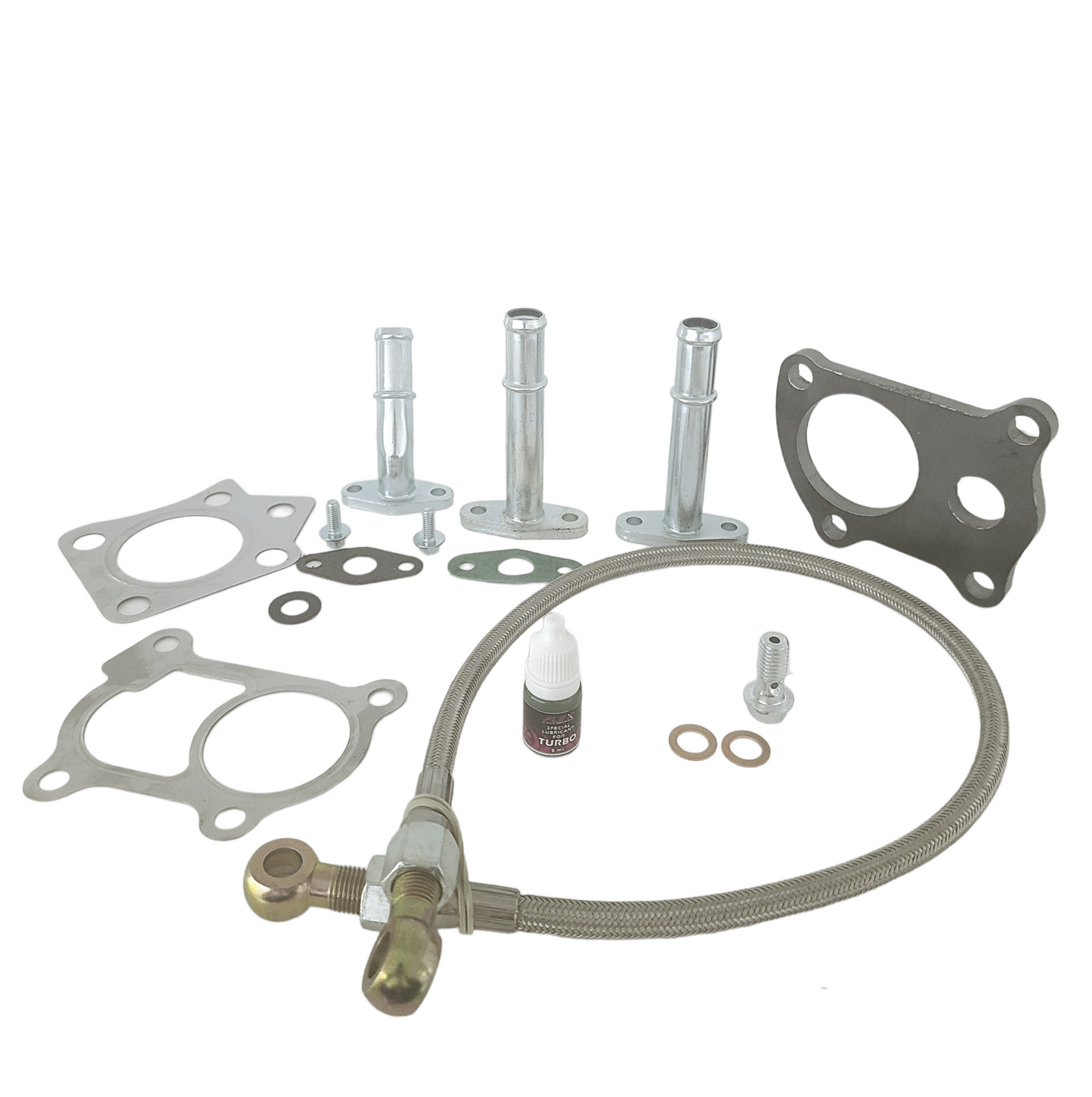

1 x FLEX Install Kit (Gaskets, Dump Pipe Flange etc.)
1 x FLEX Oil Feed Line and Oil Return Fittings
1 x FLEX Install Pre-Lube
Description
The FLEX 'BOOST' F55 is a great entry level turbo that suited to those wanting to run more boost than the F44 equivalent. The FLEX BOOST F55 Turbo is capable of safely producing up to 45psi of boost and is the perfect upgrade for those chasing 250hp-300hp from their 4cyl diesel. The 11-blade turbine ensures boost is produced in the mid RPM range, which reduces lag, and supports serious power increases when paired with a Front Mount Intercooler and +30 or +50 Injector Nozzles.
Specifications
- 48.5mm turbine / 48.5mm compressor
- 11 Blade turbine (earlier spool vs. most F55 turbos)
- 6 Blade compressor
- RHF4 Flange
- Complete Turbo Kit including Waste Gate Actuator
- Produces up to 50psi of boost
- Genuine parts imported directly from FLEX
Compatible Vehicles:
- Rodeo RA7 2007 - 2008 (4JJ1)
- RC Colorado 2008 - 2011 (4JJ1)*
- RG Colorado 2012 - 2017 (4JJ1)*
- Isuzu Dmax 2008 - 2011 (4JJ1)*
- Isuzu Dmax 2012 - 2017 (4JJ1)*
- Isuzu MUX 2012 - 2017 (4JJ1)*
*If fitting the FLEX BOOST F55 to a factory 4JJ1 VNT/VGT exhaust manifold, the turbo flange bolt holes may need to be cut on one side of the flange to align the factory bolt holes. Alternatively, the stock manifold can be drilled and tapped, or an adaptor plate can be used.
