MCR F46 Turbo Kit
MCR F46 Turbo Kit
Couldn't load pickup availability
MCR F46 Turbo Kit
Included in this Turbo Kit:

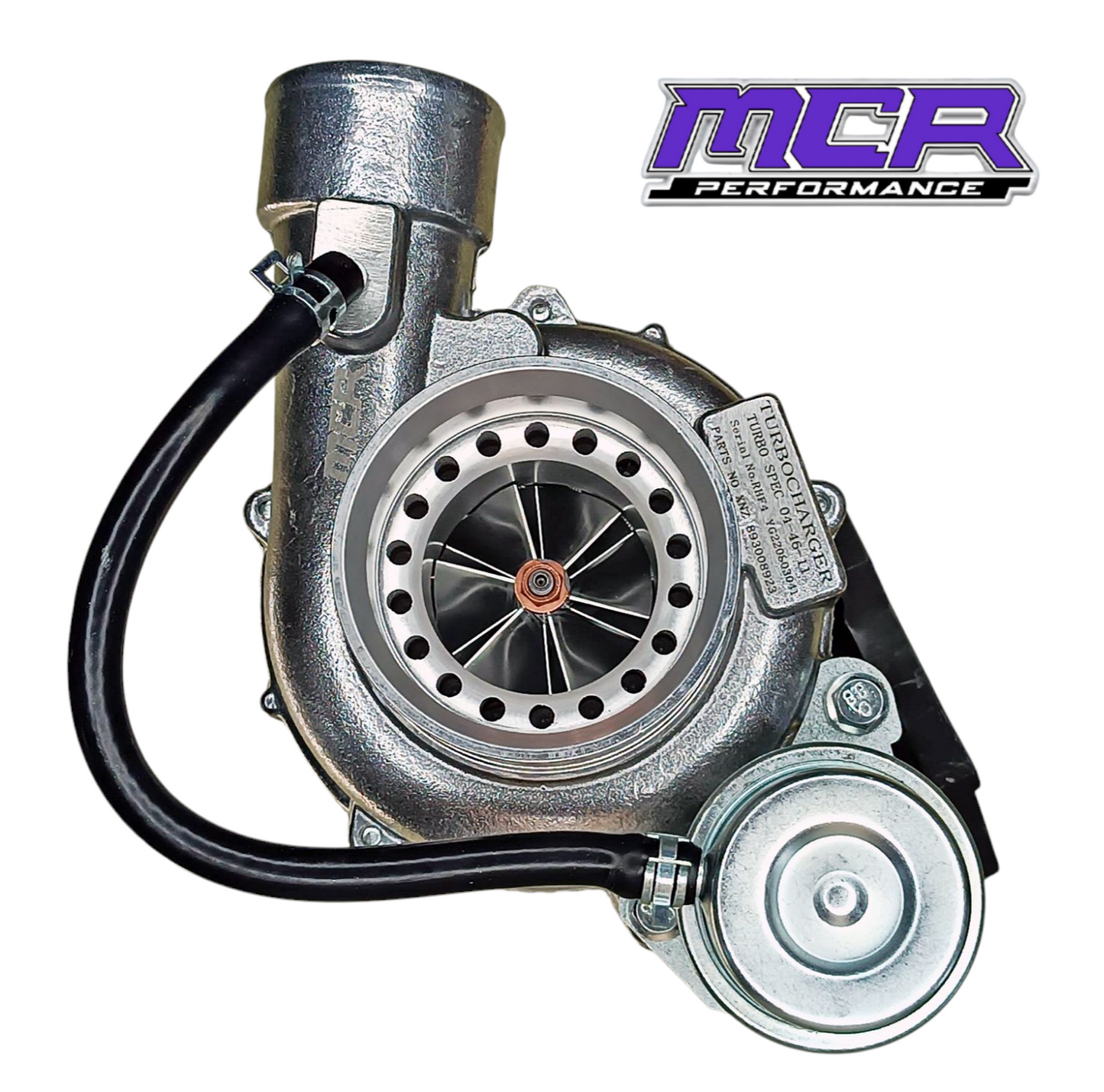

1 x MCR F46 Turbo (45.5mm)
1 x MCR Install Kit (Gaskets, Dump Pipe Flange)

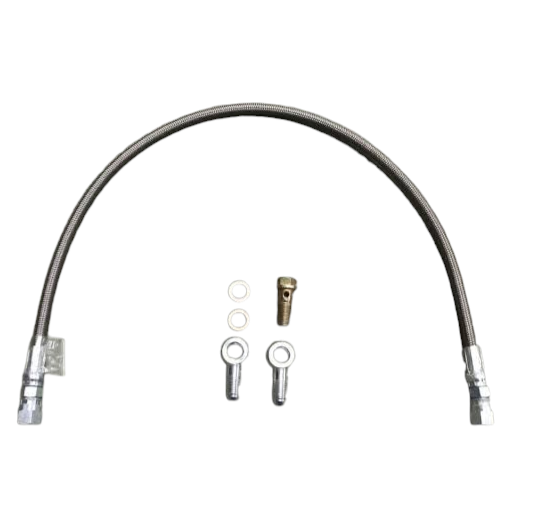

1 x MCR Oil Feed Line and Oil Return Fittings
Description
If you are looking for a turbo with more boost than an F44 turbo, but also want to minimise lag, then look no further than the MCR F46 Turbo. This turbo exhibits the perfect balance between low down and mid range boost performance.
TheFMCR F46 is a gated turbo that is designed to produce up to 50psi of boost in the low-mid RPM range - suitable for high performance and touring. Pair with an intercooler and +30 nozzles for solid power gains.
Specifications
- 45.5mm front / 45.5mm rear
- 12 blade turbine

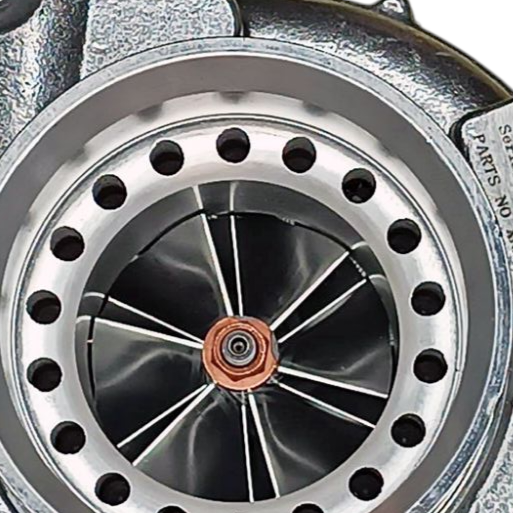

- 6 blade compressor

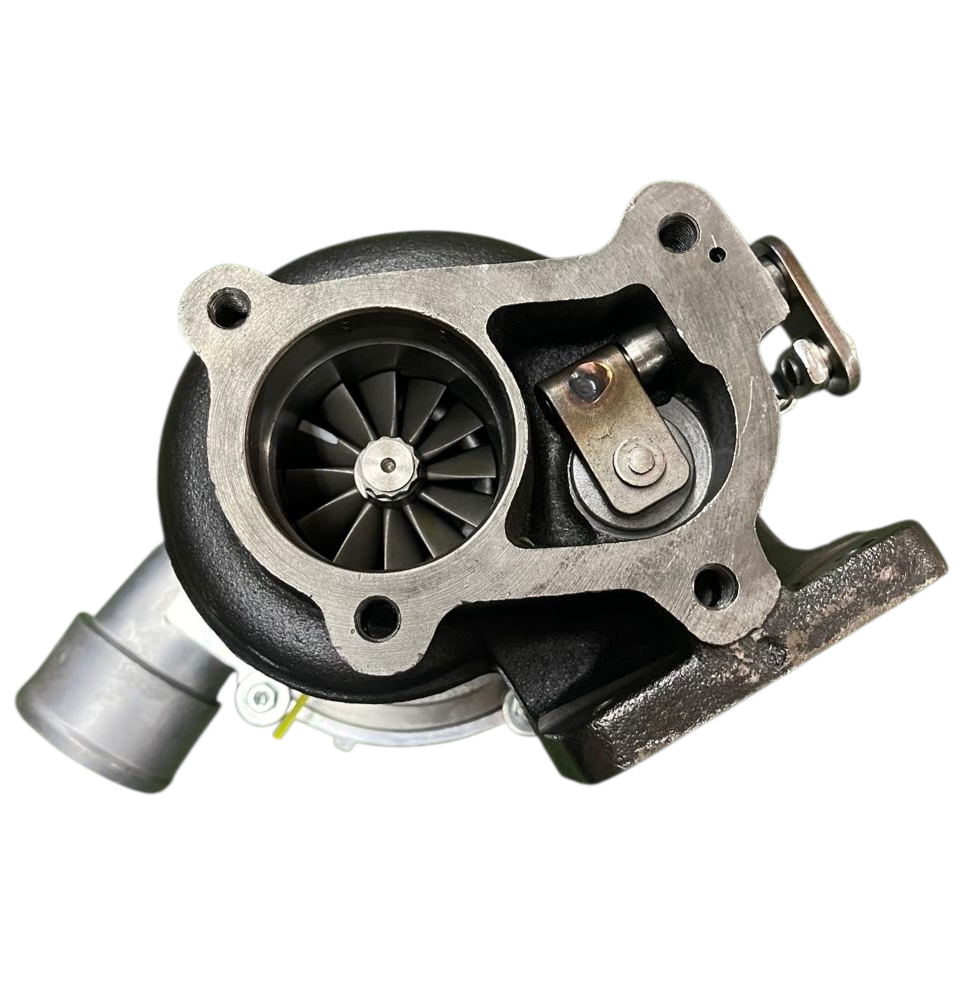

- RHF4 flange
- Waste Gate Actuator (fully assembled)
- 35-45psi recommended
- Suits 4cyl Diesel Engines
Compatible Vehicles:
- Rodeo RA7 2007 - 2008 (4JJ1)
- RC Colorado 2008 - 2011 (4JJ1)*
- RG Colorado 2012 - 2017 (4JJ1)*
- Isuzu Dmax 2008 - 2011 (4JJ1)*
- Isuzu Dmax 2012 - 2017 (4JJ1)*
- Isuzu MUX 2012 - 2017 (4JJ1)*
*If fitting the MCR F46 to a factory 4JJ1 VNT/VGT exhaust manifold, the turbo flange bolt holes may need to be cut on one side of the flange to align the factory bolt holes. Alternatively, the stock manifold can be drilled and tapped, or an adaptor plate can be used.
